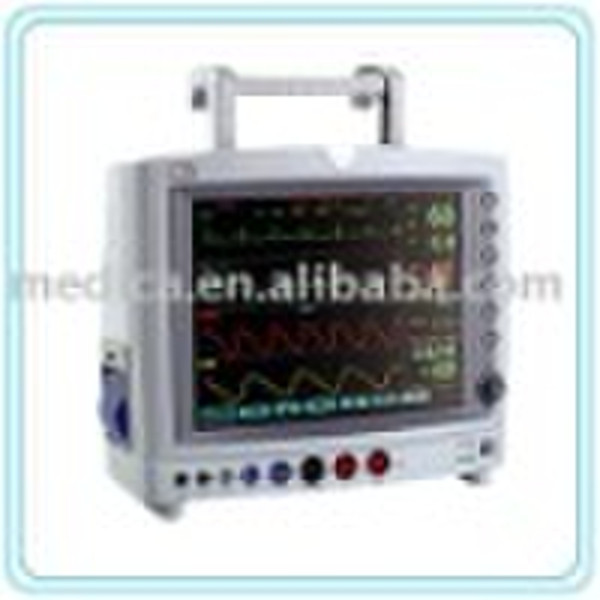

Multi-parameter Patient Monitor (CE/FDA)

Standard configuration: ECG, HR, PR, SpO2, OxyCRG diagram, ST analysis, Arrhythmia analysis, RESP*2 (RA-LL impedance and nasal cavity), NIBP (with venous punch), TEMP*2(surface and rectal type), Drug dose calculation and lead-acid battery.Optional configuration: Inside placed thermal-sensitive built-in printer; IBP function (Include 1 pressure sensor and 1 adaptable cable); ETCO2(Respironics, main stream or side stream); Nellcor SpO2 (include module, extension cable and adult probe) Cardiac ouptput Wireless networking function to patient monitor; Wall Mount for patient monitor ; Trolly for patient monitor; 12 volts Power supply for ambulance Physical Character Displayer: 12.1" color TFT LCD screen with maximum 8-waveform display. Battery: Rechargeable high-energy built-in batteryAdvanced streamline outline design, portable, compact, lightweight Operating menu with multi-language interface selection: English, Spanish, Portuguese, Chinese, Arabic, Russian, Italian, etc.Easy operation with user friendly menu structure design and rotary dialAgainst & eliminate ESU interference & defibrillation, no need to disconnect the monitor from the patient in process of defibrillating.Three-application mode: monitoring, diagnosis, operating.WAN communication function to network with central monitoring system and make long-distance monitoring, diagnosis, maintenance and software upgrade possibleOptional built-in wireless networking function 72 hours data storage.Intelligent audio and visual comprehensive alarmIn-hospital applications include emergency room’s pre and post operative care, ICU, Operation room/theater, ambulatory surgery, intermediate care/step down units, labor and delivery, and hospital-based special procedure areas.Suitable for use in physicians’ offices, clinics, outpatient surgical centers, extended care facilities and other patient care areas, which of require affordable monitoringSuitable for adult, pediatrics, neonates Technical Parameter ECG Input: 5 wires ECG cable Lead section:I,II,III/ aVR, aVL, aVF/ V Gain(mm/mV): 1/4,1/2,1,2,4 Frequency response: Diagnosis 0.05 - 100Hz Monitor 0.5 - 40 Hz Surgery 1.0 - 25 Hz Sweep speed(mm/sec): 12.5, 25, 50 Heart rate range: 30-254 BPM Heart rate accuracy: ± 1 % ST segment deviation analysis: -0.8-+0.8mV ST accuracy: ±0.02mv Temperature (surface and rectal) Measurement range: 25.0 – 45.0 °C Accuracy: ± 0.1 °C Resolution: 0.1 °C response time: ≤ 3 min. Respiration Rate(RA-LL impedance and nasal cavity) Measurement range: 0 - 120 BPM(adult) Accuracy: ± 1 BPM or 5 % Resolution: 1 BPM Cardiac ouptput (Option) Measurement range: ThermodilutionMeasurement & alarm range of blood temperature: 23 °C 43°CUnit: °C or °FAccuracy: ±0.2 °CTest range of In-line injection temperature: 0°C 27°CUnit: °C °FAccuracy: ±0.2 °CResolution: 0.1°CCO range: 0.1L/min 20.0 L/minAccuracy: ±0.2 L/min or ±5%Pulse Rate SPO2 measurement range: 0 - 100 % Resolution: 1 % Pulse measurement range: 30- 254BPM Accuracy: ± 2 % Resolution: 1 BPMNIBP (Non-invasive blood pressure)Measurement type : adult, pediatric, neonatal Measurement range: Systolic 4.0 - 37.0 kPa Diastolic 1.3 - 33.0 kPa Mean 2.6 - 35.0 kPa Accuracy : ± 0.4 kPa or 5 % Resolution: 0.1 kPa Protection: over pressureIBP(Invasive blood pressure) (with venous punch) (Option) Measurement range: -1.3 40kPa (-10 300mmHg) Channel: 2 channel Transducer sensitivity: 5MV/V/mmHg Unit display: KPa or mmHg selectable ETCO2 (side stream type) (Option) Measurement range: 0 % - 10.0 % (ins CO2 and et CO2) Accuracy: ± 2 mm Hg (<5 % Measurement value) 10 % (> 5 % Measurement value) Response time: 180 Ms ≤ 90% Safety standard: IEC 60601-1 Quality System: ISO13485: 2003 Product Certificate: CE, FDA Environment OperationStorage Temperature0.5 - 40 °C -20 - 50 °C Relative humidity ≤ 80% Power requirements Input: 98 260 V AC, 50/60Hz Consumption: ≤ 80VA Accessories for Standard configuration: 1 set of ECG cable 10 pcs of ECG electrode 1 set of NIBP extend cable 1 set of NIBP adult or pediatric or neonate cuff 1 set of RESP nasal cavity pipe 1 set of TEMP surface probe 1 set of TEMP cavity probe 1 set of integrated adult or pediatric or neonate SpO2 sensor 1 set of power supply cable 1 pcs of dust mask 1 pcs of accessories bag
